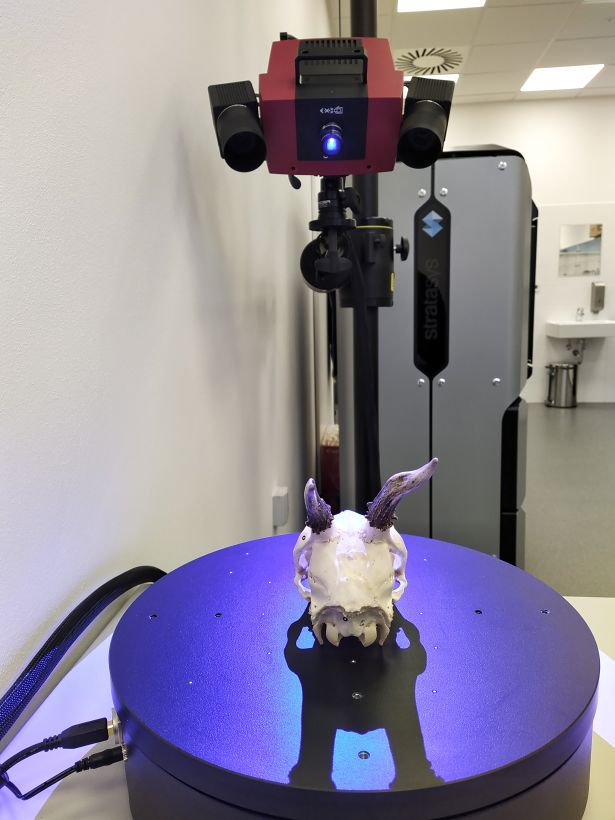

3D scanner ATOS (Advanced Topometric Sensor) Compact Scan 12M Essential Line

It is a mobile non-contact device consisting of stereo CCD cameras with a resolution of 12 Mpx and a fringe projector. This 3D scanner can scan an object with an accuracy of up to 0.01 mm and the Atos measuring system is certified for metrology. The device is placed on an adjustable  stand and has two measuring volumes – 300 and 600 mm. The device is equipped with a blue light which makes it possible to scan regardless of the lighting conditions. The scanner uses the Fringe Projection method, where precise edges are projected onto the surface using a laser, which change based on the shape of the object. The ATOS system uses triangulation procedure. In order to achieve overall digitization, the object needs to be photographed from different angles. The ATOS system is able to convert these shots into a common coordinate system. The main advantage of the 3D scanner is high resolution when scanning the surface of an object. To increase the ergonomics of using the device, the 3D scanner is supplemented with an automatic rotating pad, which ensures that the object is scanned in precisely measured sections.

Location: Laboratory of 3D imaging methods HT010

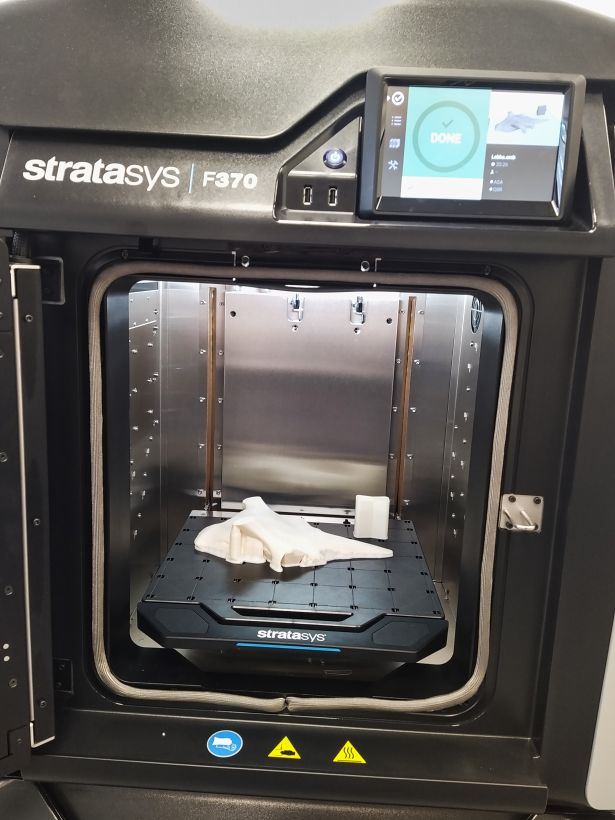

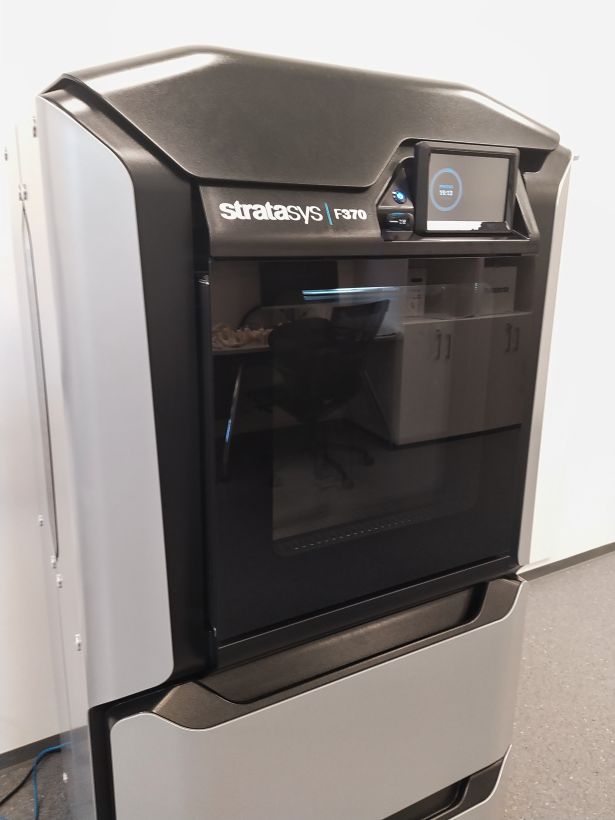

Stratasys F370 printer

This printer makes it possible to create very precise prototypes from several types of thermoplastics. It is fully compatible with our 3D scanner, so we can scan the object, modify it, and then print it according to our requirements. When printing an object, basic building material is used as well as supporting material.

Location: Laboratory of 3D imaging methods HT010

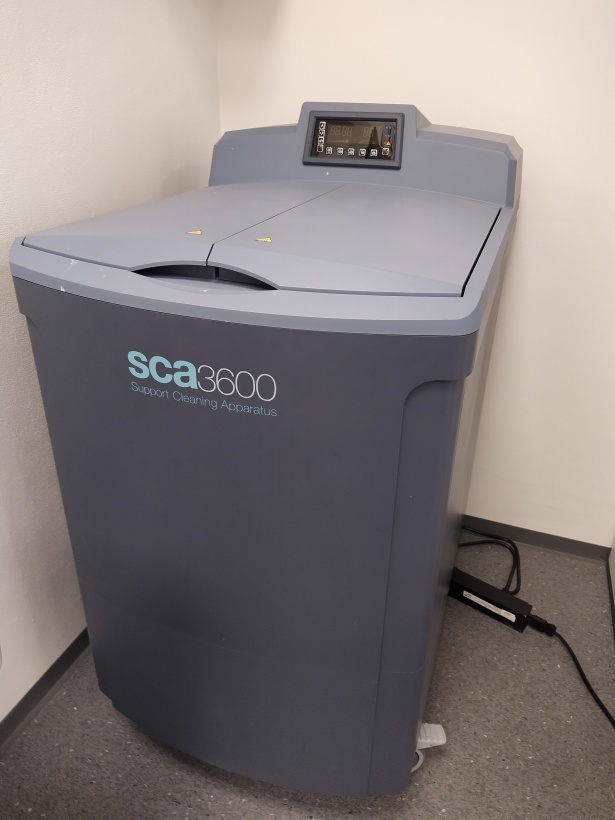

SCA3600 ORYX

In the case of more complicated models, this material needs to be “washed”. For these purposes, we use another device in this laboratory – a SCA 3600 support cleaning system, which can dissolve and wash out the support material using a chemical solution.

Location: Laboratory of 3D imaging methods HT010
